5mm Round With Flange Type Infrared LED

LL-M6038

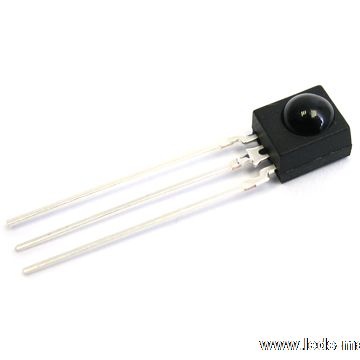

Item: LL-M6038

Product Description

Features:
◇ Photo detector and preamplifier in one package.
◇ Photodiode with integrated circuit.
◇ Internal filter for PCM frequency.
◇ Improved shielding against electrical field disturbance.
◇ High protection ability against EMI.
◇ High immunity against ambient light.
◇ High sensitivity.
◇ Low voltage and low power consumption.
◇ Long reception distance.
◇ Circular lens to improve the receive characteristic.
◇ TTL and CMOS compatibility.
◇ Output active low.
◇ Line-up for various center carrier frequencies.
◇ The product itself will remain within RoHS compliant version.
Descriptions:
◇ The M6038 series are miniaturized receivers for infrared remote control systems. PIN
diode and preamplifier are assembled on lead frame, the epoxy package is designed
as IR filter. The demodulated output signal can directly be decoded by a
microprocessor. The benefit is the reliable function even in disturbed ambient and the
protection against uncontrolled output pulses.
◇ The M6038 series is the standard IR remote control receiver series, supporting all
major transmission codes.
Applications:
◇ Infrared applied system
◇ Light detecting portion of remote control.
◇ AV instruments such as Audio, TV, VCR, CD, MD, etc.
◇ CATV set top boxes.
◇ The other equipments with wireless remote control.
◇ Home appliances such as Air-conditioner, Fan, etc.
◇ Multi-media Equipment.
